Hangzhou Ocean Industry Co., Ltd. jedan je od vodećih proizvođača i dobavljača fb v-kolotura u Kini. Dobrodošli u veleprodaju izdržljivih industrijskih lanaca i dijelova za prijenos snage proizvedenih u Kini ovdje iz naše tvornice. Svi prilagođeni proizvodi su visoke kvalitete i konkurentne cijene.

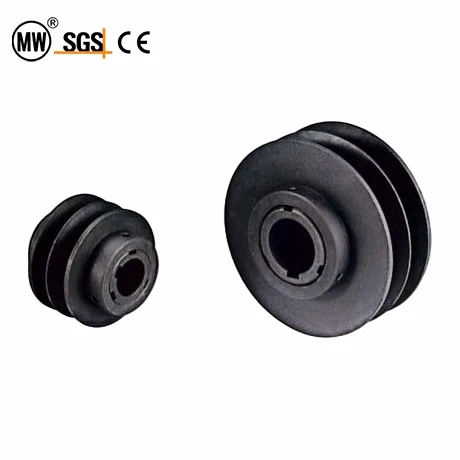

VP remenice s podesivom brzinom su VP remenice s više-upotrebom i podesivim brzinama. Dostupni su sa standardnim ravnim provrtom i konusnim provrtom za zaključavanje.

VP remenice s podesivom brzinom izrađene su od GG25 visoko-kvalitetnog sivog lijevanog željeza ili drugih materijala na zahtjev kupaca. Koloturnice su obrađene visoko preciznim CNC-om, dinamički su uravnotežene i presvučene crnom bojom. Imaju vrlo visoku preciznost prijenosa i učinkovitost.

Parametar

Raspon proizvoda:

Standardi	Vrsta serije	Raspon veličina
ANSI	CVL/CVM	CVL25 do CVM50
	1VP	1VP25 do 1VP75A
	2VP	2VP36 do 2VP75A
	SB-1	SB33-1 do SB71-1
	SB-2	SB33-2 do SB71-2
DIN	SB-1	SB083-1 do SB180-1
DIN	SB-2	SB083-2 do SB180-2

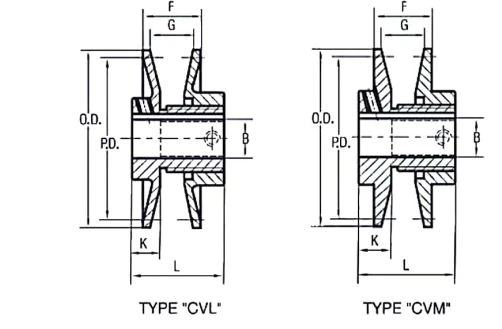

ANSI CVL/CVM

ANSI CVM CVL

dio br.	Raspon promjera												Zaliha bušotina označeno "X"
	Pojasevi "3L".				Pojasevi "4L" ili "A".				Pojasevi "5L" ili "B".
	Min. Pitch	Otvoreno	Maks. Pitch	Otvoreno	Min. Pitch	Otvoreno	Maks. Pitch	Otvoreno	Min. Pitch	Otvoreno	Maks. Pitch	Otvoreno	1/2	5/8	3/4	7/8
CVL 25 CVL 30	1.6 1.8	4 4	2.4 2.7	0 0	- -	- -	- -	- -	- -	- -	- -	- -	● ●	● ●
CVL 34 CVL 40 CVL 44 CVM 50	1.7 2.3 2.7 3.3	4 4 4 4	2.5 3.1 3.5 4.1	0 0 0 0	1.9 2.4 2.8 3.4	5 5 5 5	2.9 3.4 4.4 4.4	0 0 0 0	2.4 2.7 3.1 3.7	5 6 6 6	3.2 3.7 4.1 4.7	1 1 1 1	● ● ● ●	● ● ● ●	● ● ● ●	● ● ●

dio br.	Dimenzije							tež. Lbs.
	OD	F		G		L	K
		Maks	Min.	Maks.	Min.
CVL25 CVL30	2.50" 2.87	25/32" 25/32	17/32" 17/32	5/8" 5/8	3/8" 3/8	11/2" 11/2	37/64" 37/64	0.8 1.0

CVL34 CVL40 CVL44 CVM50	3.15 3.75 4.15 4.75	1 1 1 11/16	5/8 5/8 5/8 11/16	7/8 7/8 7/8 7/8	1/2 1/2 1/2 1/2	111/16 111/16 111/16 17/8	37/64 37/64 37/64 21/32	1.1 1.3 1.3 2.8

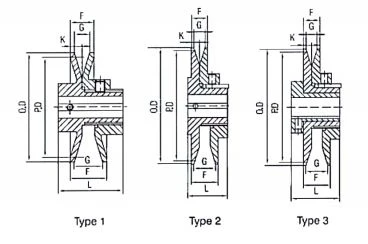

ANSI 1VP

ANSI 1vp

Spcfctn

Tip

O.D

F

G

L

K

Provrti kundaka s oznakom "●"

tež
Lbs.

Maks

Min

Maks

Min

1/2

5/8

3/4

7/8

1

11/8

11/4

13/8

15/8

1VP25
1VP30
1VP34
1VP40
1VP44A

1
1
1
1
1

2.50
2.87
3.15
3.75
4.15

13/16
13/16
1
11/16
11/16

9/16
9/16
11/16
11/16
11/16

5/8
5/8
13/16
7/8
7/8

3/8
3/8
1/2
1/2
1/2

11/2
121/32
17/8
17/8
17/8

5/8
19/32
21/32
21/32
21/32

●
●
●
●
●

●
●
●
●

●
●

0.8
0.9
1.2
1.7
1.9

1VP44B
1VP50A
1VP50B
1VP56A
1VP56B

2
1
2
1
2

4.15
4.75
4.75
5.35
5.35

11/8
11/16
11/8
11/16
11/8

3/4
11/16
3/4
11/16
3/4

7/8
7/8
7/8
7/8
7/8

1/2
1/2
1/2
1/2
11/2

17/8
2
17/8
17/8
17/8

11/16
25/32
11/16
21/32
11/16

●

●

●

●

●

2.6
1.9
2.9
2.7
3.4

1VP60
1VP60A
1VP62
1VP65
1VP65A

2
3
2
2
3

6.00
6.00
5.95
6.50
6.50

11/4
11/4
11/8
11/4
11/4

7/8
7/8
3/4
7/8
7/8

11/32
11/32
7/8
11/32
11/32

21/32
21/32
1/2
21/32
21/32

121/32
25/32
129/32
121/32
25/32

7/16
15/16
21/32
7/16
15/16

●

●

●
●

●

●

●
●

●

●

●
●

●

●

5.5
5.3
5.7
5.8
5.5

1VP68
1VP71
1VP71A
1VP75
1VP75A

2
2
3
2
3

6.55
7.10
7.10
7.50
7.50

11/8
11/4
11/4
11/4
11/4

3/4
7/8
7/8
7/8
7/8

7/8
11/32
11/32
11/32
11/32

1/2
21/32
21/32
21/32
21/32

129/32
121/32
25/32
121/32
25/32

21/32
7/16
15/16
7/16
15/16

●

●
●

●

●

●
●

●

●
●

●
●

●

●

●

6.4
6.8
6.5
7.3
7.0

standardna sjedala za ključeve

Bore Range	Ključevi
1/2
5/8~7/16	3/16x3/32
15/16~11/4	1/4x1/8
15/16~13/8	5/16x5/32
17/16~19/16	3/8x3/16

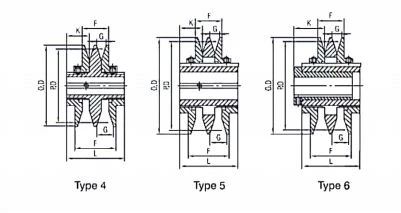

ANSI 2VP

ANSI2vp

Spcfctn

Tip

O.D

F

G

L

K

Provrti kundaka označeni" ●"

tež
Lbs.

Maks

Min

Maks

Min

1/2

5/8

3/4

7/8

1

11/8

11/4

13/8

15/8

2VP36
2VP42
2VP50
2VP56
2VP60

4
4
5
5
5

3.35
3.95
4.75
5.35
6.00

2
21/8
21/8
21/8
23/8

13/8
13/8
13/8
13/8
15/8

13/16
7/8
7/8
7/8
11/32

1/2
1/2
1/2
1/2
21/32

3
3
3
3
31/4

13/16
13/16
13/16
13/16
11/4

●

●
●
●
●

●
●
●
●
●

●
●
●
●

●

3.4
4.4
6.3
7.8
10.6

2VP60A
2VP62
2VP65
2VP65A
2VP68

6
5
5
6
5

6.00
5.95
6.50
6.50
6.55

23/8
21/8
23/8
23/8
21/8

15/8
13/8
15/8
15/8
13/8

11/32
7/8
11/32
11/32
7/8

21/32
1/2
21/32
21/32
1/2

33/4
3
31/4
33/4
3

13/4
13/16
11/4
13/4
13/16

●
●

●

●

●
●

●

●

●

●
●

●

●

●

10.4
10.0
12.3
12.0
11.7

2VP71
2VP71A
2VP75
2VP75A

5
6
5
6

7.10
7.10
7.50
7.50

23/8
23/8
23/8
23/8

15/8
15/8
15/8
15/8

11/32
11/32
11/32
11/32

21/32
21/32
21/32
21/32

31/4
31/4
31/4
31/4

11/4
13/4
11/4
13/4

●

●

14.6
14.4
16.5
16.3

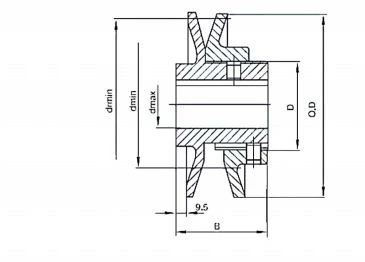

ANSI SB-1

dio br.	OD	D	Provrt max	L	namjestiti vijke	dr			tež Lbs
dio br.	OD	D	Provrt max	L	namjestiti vijke	min	max		tež Lbs
SB33-1	3.26	19/16	7/8	17/8	1/4x1/4	2.48 2.25	3.11 3.00	3V 3/8x5/16	1.86
SB37-1	3.66	17/8	1	17/8	1/4x1/4	2.65 2.60 2.40 2.36	3.50 3.45 3.45 3.35	3V 4L/A 3/8x5/16 1/2x5/16	2.14
SB42-1	4.25	115/16	11/8	17/8	1/4x1/4	3.10 3.20 2,90 2.95	3.70 4.05 3.68 4.00	3V 4L/A 3/8x5/16 1/2x5/16	3.42
SB47-1	4.72	21/4	11/8	17/8	1/4x1/4	3.60 3.70 3.40 3.50	4.20 4.55 4.20 4.50	3V 4LA 3/8x5/16 12n516	3.63
SB55-1	5.45	21/4	11/2	17/8	1/4x1/4	4.30 4.40 4.60 4.10 4.15 4,30	4.88 5.20 5.16 4.85 5.10 5.05	3V 4L/A 5V/B 3/8x5/16 1/2x5/16 21/32x13/32	5.40
SB63-1	6.30	31/8	21/16	21/16	5/16x5/16	4.70 4.80 5.00 4.50 4.55 4.70	5.30 5.60 6.00 5.25 5.75 5.90	3V 4L/A 5V/B 3/8x5/16 1/2x5/16 21/32x13/32	9.34
SB71-1	7.10	31/8	21/16	21/16	5/16x5/16	5.55 5.75 5.30 5.50	6.40 6.80 6.35 6.70	4L/A 5V/B 1/2x5/16 21/32x13/32	11.20

ANSI SB-2

DIN SB-2

dio br.	OD	D	Provrt max	L	namjestiti vijke	dr			tež Lbs
dio br.	OD	D	Provrt max	L	namjestiti vijke	min	max		tež Lbs
SB33-2	3.26	19/16	7/8	3"	1/4x1/4	2.48 2.25	3.11 3.00	3V 3/8x5/16	3.10
SB37-2	3.66	17/8	1	3"	1/4x1/4	2.65 2.60 2.40 2.36	3.50 3.45 3.45 3.35	3V 4L /A 3/8x5/16 1/2x5/16	3.63
SB42-2	4.25	115/16	11/8	3"	1/4x1/4	3.10 3.20 2.90 2.95	3.70 4.05 3.68 4.00	3V 4L/A 3/8x5/16 1/2x5/16	4.46
SB47-2	4.72	21/4	11/8	3"	1/4x1/4	3.60 3.70 3.40 3.50	4.20 4. 55 4.20 4.50	3V 4L/A 3/8x5/16 1/2x5/16	5.60
SB55-2	5.45	21/4	11/2	3"	1/4x1/4	4.30 4.40 4.60 4.10 4.15 4.30	4.88 5.20 5.16 4.85 5.10 5.05	3V 4LA 5V/B 3/8x5/16 1/2x5/16 21/32x1332	9.34
SB63-2	6.30	31/8	21/16	39/16	5/16x5/16	4.70 4.80 5.00 4.50 4.55 4.70	5.30 5.60 6.00 5.25 5.75 5.90	3V 4L/A 5V/B 3/8x5/16 1/2x5/16 21/32x13/32	15.60
SB71-2	7.10	31/8	21/16	39/16	5/16x5/16	5.55 5.75 5.30 5.50	6.40 6.80 6.35 6.70	4L/A 5V/B 1/2x5/16 21/32x13/32	19.10

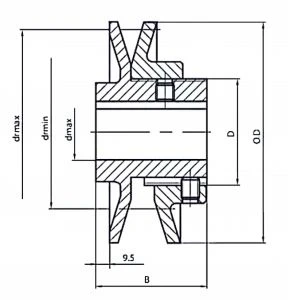

DINSB-1

DIN SB-1

dio br.	O.D	D	Provrt dmax	B	namjestiti vijke	dr			kg
dio br.	O.D	D	Provrt dmax	B	namjestiti vijke	min	max		kg
SB083-1	83	40	26	48	M6x6	58 53	72 72	SPZ Z10x6	0.90
SB093-1	93	45	28	48	M6x6	65 68 60 63	78 85 78 85	SPZ SPA Z10x6 A13x8	1.03
SB108-1	108	50	28	48	M6x6	80 83 75 78	93 100 93 100	SPZ SPA Z10x6 A13x8	1.65
SB120-1	120	55	28	48	M6x6	92 95 87 90	104 112 104 112	SPZ SPA Z10x6 A13x8	1.75
SB138-1	138	55	38	48	M6x6	110 113 119 115 108 111	122 130 131 122 130 128	SPZ SPA SPB Z10x6 A13x8 B17x11	2.60
SB160-1	160	80	52	53	M8x8	119 122 128 113 117 120	133 140 150 133 138 150	SPZ SPA SP8 Z10x6 A13x8 B17x11	4.50
SB180-2	180	80	52	90	M8x8	142 148 137 140	160 170 158 170	SPA SPB A13x8 B17x11	5.40

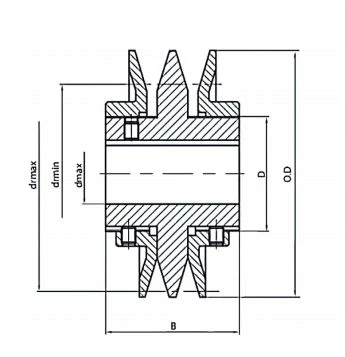

DINSB-2

DIN SB-2

dio br.	O.D	D	Provrt dmax	B	namjestiti vijke	dr			kg
dio br.	O.D	D	Provrt dmax	B	namjestiti vijke	min	max		kg
SB083-2	83	40	26	76	M6x6	58 53	72 72	SPZ Z10x6	1.50
SB093-2	93	45	28	76	M6x6	65 68 60 63	78 85 78 85	5PZ SPA Z10x6 A13x8	1.75
SB108-2	108	50	28	76	M6x6	80 83 75 78	93 100 93 100	SPZ SPA Z10x6 A13x8	2..15
SB120-2	120	55	28	76	M6x6	92 95 87 90	104 112 104 112	SPZ SPA Z10x6 A13x8	2.70
SB138-2	138	55	38	76	M6x6	110 113 119 115 108 111	122 130 131 122 130 128	SPZ SPA SPB Z10x6 A13x8 B17x 11	4.50
SB160-2	160	80	52	90	M8x8	119 122 128 113 117 120	133 140 150 133 138 150	SPZ SPA SPB Z10x6 A13x8 B17x 11	7.50
SB180-2	180	80	52	90	M8x8	142 148 137 140	160 170 158 170	SPA SPB A13x8 B17x 11	9.20
